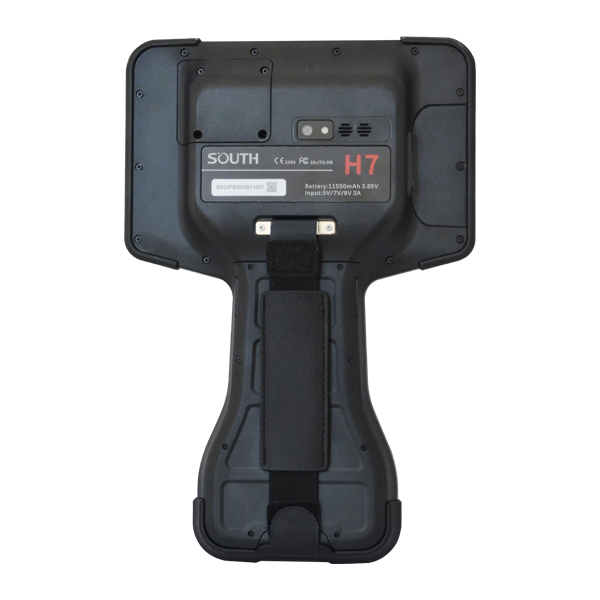

South H7 Controller – Standard

$2,990.00

SOUTH H7 Handheld Controller is a rugged, all-in-one landscape Android 12 field controller built for fast surveying workflows—big bright screen, real keypad control, and all-day power. With 4G + dual-band Wi-Fi + Bluetooth + NFC, plus optional Zigbee and high-precision GNSS modules, the H7 can run as a controller for multiple devices (GNSS, robotic total stations, SLAM, pipeline detectors) or even as a capable GIS collector.

Main features

7.0″ IPS display (1920×1200) + 850 nits sunlight readability
Android 12, Octa-core CPU, 8GB RAM + 256GB storage
Backlit QWERTY keypad with function keys
11550mAh battery + USB-C PD fast charging
Connectivity: 4G LTE, dual-band Wi-Fi (2.4/5G), Bluetooth, NFC, MicroSD + USB-C
IP67, 1.5m drop, wide temp range -30°C to +66°C
Optional Zigbee module (up to 600m in optimal conditions) for robotic total station connectivity
Optional high-precision GNSS module (1698 channels) with RTK RMS: 0.8cm+1ppm H / 1.5cm+1ppm V

Categories Robotic Total Stations, Tablets & Controllers Tags GNSS, GNSS Rover, South Brand: SOUTH

Free Shipping

Orders Over $500

Safety Insurance

For every purchased

FEATURES

7.0" Display | 11550mAh Battery | 8+256GB | 850 nits

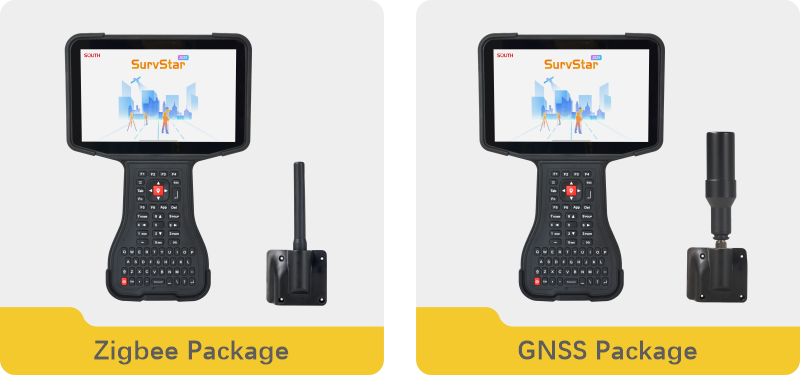

Modular Versatility, Offering More Options

Zigbee Module

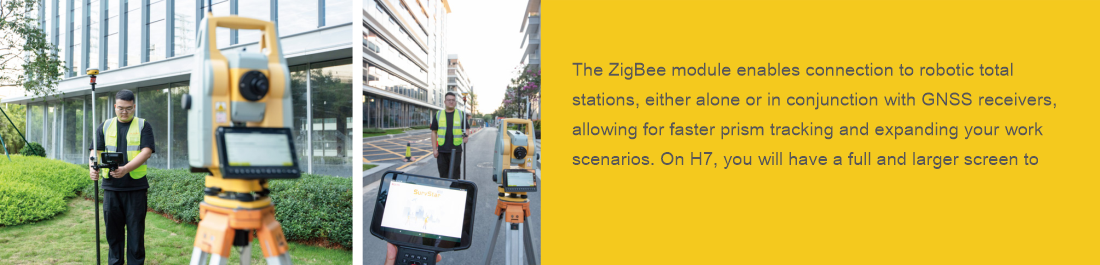

Control Robotic Total Station and Experience the Prism Plus Position Solution

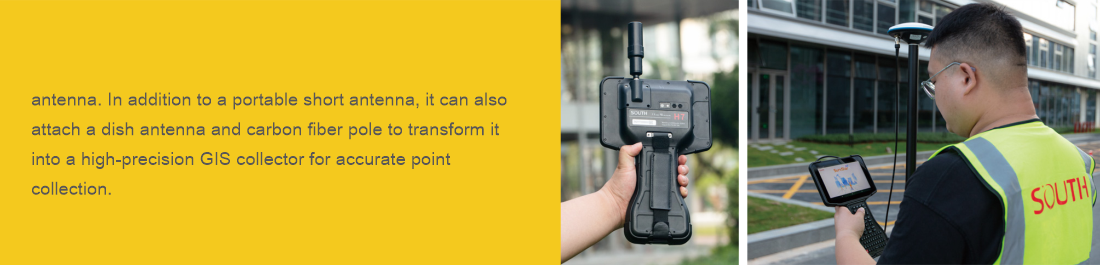

High-precision Module—Work as a GIS Collector

Designed for Efficiency—The Ultimate Field Companion

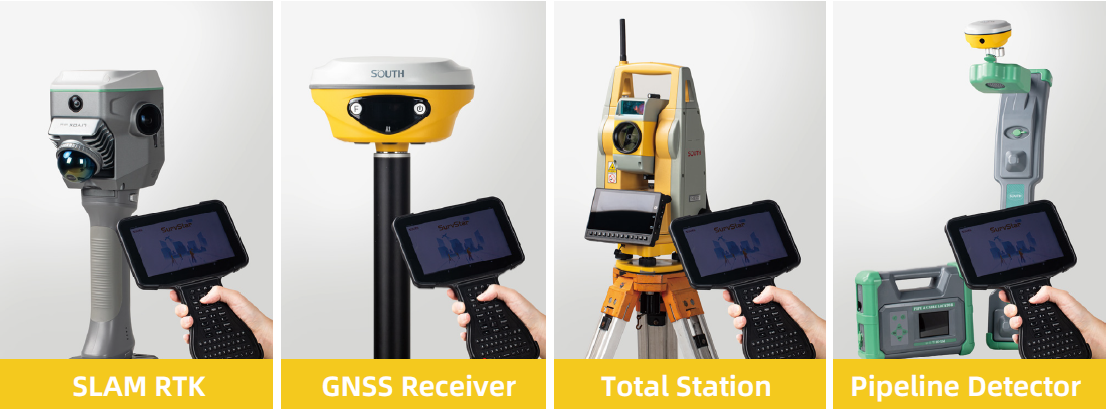

One Platform for Multiple Devices

When used as a regular controller, it is compatible with a wide range of devices such as SLAM RTK, GNSS receivers，total stations, and pipeline detectors. It delivers a comprehensive and flexible solution for diverse field applications, creating a new surveying ecosystem.

SPECIFICATIONS

Basic	Dimensions	290 x 195 x 30mm
	Weight (built-in battery)	824g (Standard), 860(Zigbee), 890(GIS)
	Material	Impact-resistant TPU shell
	Display	7-inch IPS LCD, 1920×1200
	Brightness	850 cd/m³
	Keypad Type	Backlit QWERTY keypad
	Camera	13MP rear
	Battery	11550mAh/ 3.85V
	Charging	5V2A, USB-C, PD fast charging
	Interfaces	Type-C, NFC, MicroSD card
Performance Parameters	Processor	Octa-core CPU (2x Performance @ 2.0GHz + 6x Efficiency @ 1.8GHz)
	OS	Android 12
	RAM	8GB
	Storage	256GB
Wireless Communication	WIFI	IEEE 802.11 a/b/g/n/ac 2.4G/5G Dual-Band supports fast roaming
	Bluetooth	ET2.1+EDR/3.0/4.1LE/4.2/5.0
	Network	4G LTE
Product Reliability	Operating Temp	-30°C ~ +66°C
	Storage Temp	-30°C ~ +70°C
	Protection Rating	IP67
	Drop Test	1.5m drop onto concrete surface (all six faces)
	Salt Spray Test	NaCl solution concentration 5%, PH: (6.5-7.2), continuous spray 24H settling index 1.0-2ml/80cm².h
	Vibration Test	Fixed frequency 50Hz, amplitude 100mm, duration 30min
	Expansion	Zigbee module GIS module
GNSS	GNSS Signal	1698 Channels GPS L1C/A/L1C/L2P(Y)/L2C/L5 BDS B1I/B2I/B3I/B1C/B2a/B2b GLONASS G1/G2/G3 Galileo E1/E5a/E5b/E6 QZSS L1C/A/L1C/L2C/L5 NavIC L5 / SBAS L1C/A
GNSS	Positioning Precision	Single Point Positioning (RMS): Horizontal: 1.5 m Vertical: 2.5 m DGPS (RMS): Horizontal: 0.4 m Vertical: 0.8 m RTK (RMS): Horizontal: 0.8 cm + 1 ppm Vertical: 1.5 cm + 1 ppm
Zigbee	Zigbee Connection Distance	600m (Optimal Environment)
