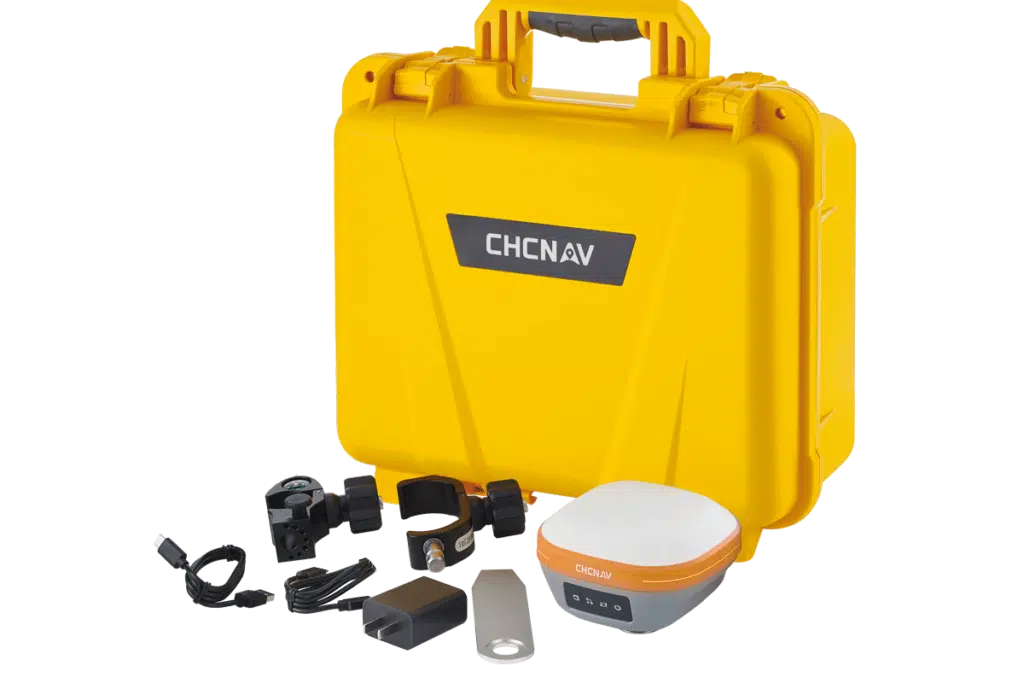

CHCNAV i73+ IMU-RTK GNSS

$4,890.00

The i73+ GNSS is a compact receiver with a built-in UHF modem, perfect for base station or rover applications. Its automatic pole tilt compensation boosts point measurement efficiency by 20% and improves stakeout productivity by 30%. Lightweight and portable, the i73+ enhances survey comfort, adapting easily to various job sites and reducing operator fatigue.

CHCNAV i73+ IMU-RTK GNSS
This item: CHCNAV i73+ IMU-RTK GNSS
$4,890.00
$4,890.00
CHCNav HCE620 Controller
$1,610.00
CHCNAV LT800 Rugged Tablet
$2,189.00

Free Shipping

Orders Over $500

Professional GNSS

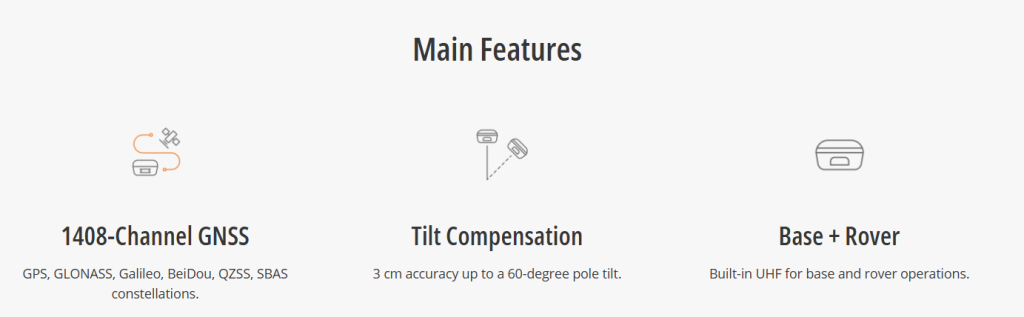

Ensure robust data quality with the i73+’s advanced 1408-channel GNSS technology, which efficiently tracks satellite signals from all constellations, including GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS.

With an IP67 rating, the i73+ is fully dustproof and waterproof, delivering reliable performance in harsh environments. Its rugged design resists shock and vibration, making it ideal for demanding fieldwork.

Built-In Modems

Compatible with all major radio protocols, the i73+ operates as both a base and rover, delivering high productivity. When connected to a GNSS RTK network via CHCNAV LandStar field software, it excels as a highly efficient NTRIP rover.

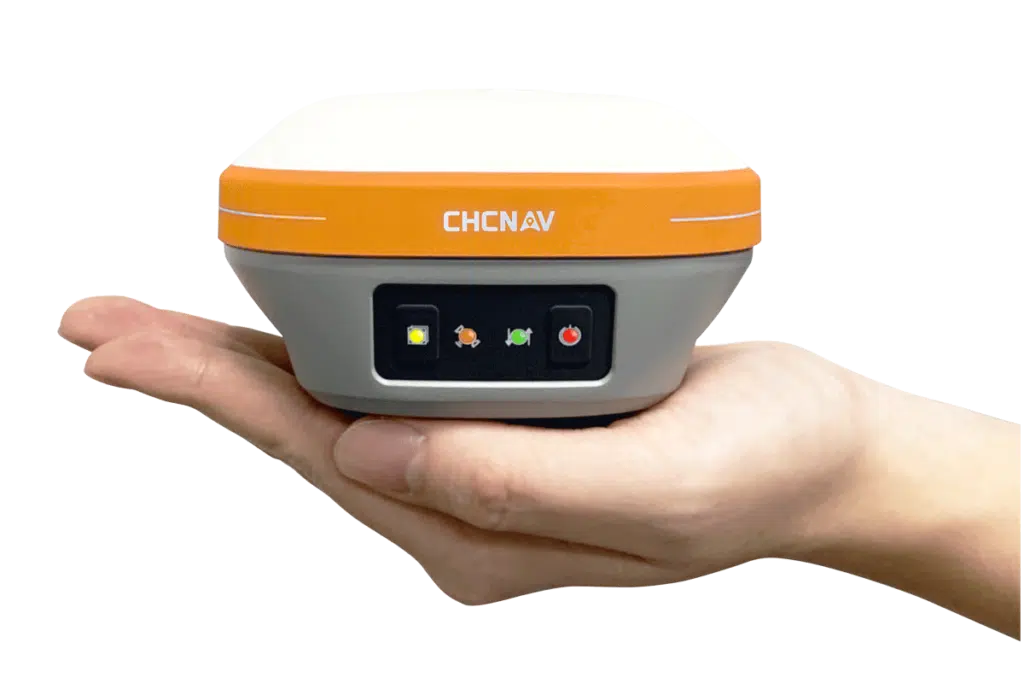

Portable and Lightweight

Weighing just 0.73 kg, the i73+’s compact magnesium alloy design ensures easy portability and operation, reducing operator fatigue and enhancing survey comfort during fieldwork.

Perform extensive surveys with the i73+’s 6800 mAh battery, offering up to 24 hours of RTK rover operation and 10.5 hours of UHF RTK base operation, ensuring reliable performance throughout long field sessions.

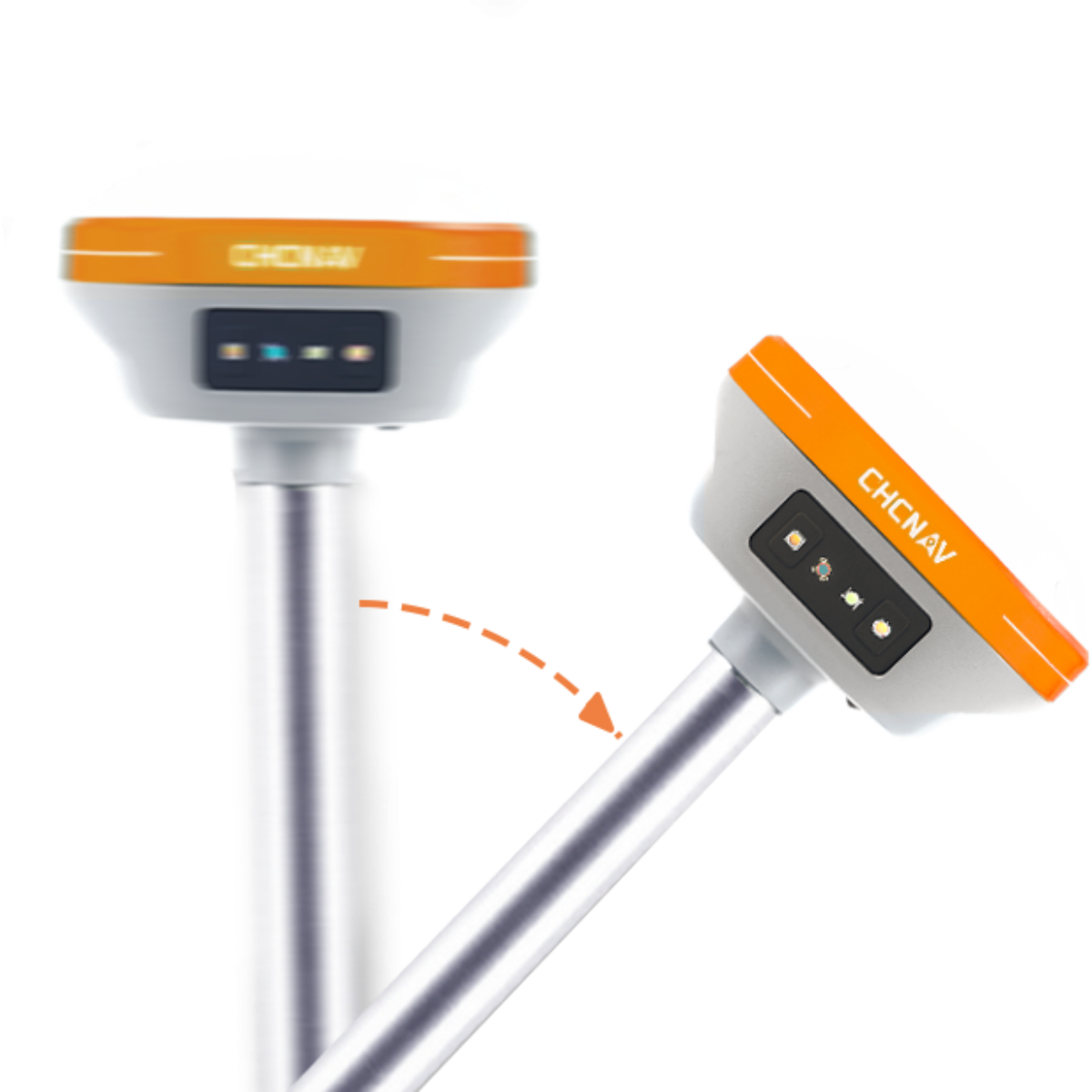

Pole Tilt Compensation

Boost point measurement efficiency by 20% and stakeout speed by 30% with the i73+. Its automatic compensation for up to 60° pole tilt removes the need for precise pole leveling, enhancing field productivity.


SPECIFICATIONS

GNSS performance

Channels1,408 (iStar)
GPSL1C/A · L2P(Y) · L2C · L5
GLONASSL1 · L2 · L3*
GalileoE1 · E5a · E5b · E6*
BeiDouB1I · B2I · B3I · B1C · B2a · B2b
QZSSL1 · L2 · L5 · L6*
NavIC / IRNSSL5*
PPPB2b-PPP
SBASL1 · L5

Accuracy

RTKH: 8 mm + 1 ppm RMS · V: 15 mm + 1 ppm RMS
PPKH: 3 mm + 1 ppm RMS · V: 5 mm + 1 ppm RMS
High-precision staticH: 2.5 mm + 0.1 ppm RMS · V: 3.5 mm + 0.4 ppm RMS
Code differentialH: 0.4 m RMS · V: 0.8 m RMS
AutonomousH: 1 m RMS · V: 1.5 m RMS
Time to first fixcold < 45 s · hot < 10 s · re-acquisition < 2 s

RTK initialisation < 10 s; reliability > 99.9%.

Positioning rate 1 / 5 / 10 Hz (10 Hz via future firmware upgrade).

IMU tilt compensation

IMU update rate200 Hz
Tilt angle0–60°
RTK tilt-compensatedAdditional horizontal pole-tilt uncertainty typically < 8 mm + 0.7 mm/° tilt
Tilt sensorCalibration-free · immune to magnetic disturbances · E-bubble levelling

Communication and data

Wi-Fi802.11 b/g/n, access point mode
Bluetoothv4.2
OtherNFC
Ports1 x USB Type-C (external power, data download, firmware update) · 1 x UHF antenna port (TNC female)
UHF radioStandard internal Tx/Rx 410–470 MHz · transmit power 0.5 W / 1 W · protocols CHC, Transparent, TT450, Satel* · 9,600–19,200 bps · range typical 3 km, up to 8 km in optimal conditions
Data formatsRTCM 2.x, RTCM 3.x, CMR in/out · HCN, HRC, RINEX 2.11 / 3.02 · NMEA 0183 output · NTRIP Client, NTRIP Caster
Data storage8 GB internal

Electrical

Power consumptionTypical 2.2 W
BatteryBuilt-in, non-removable · 6,800 mAh · 7.4 V
Operating timeRTK rover up to 24 h · UHF RTK base up to 10.5 h · static up to 25 h (subject to temperature)

Hardware

Size (L × W × H)119 × 119 × 85 mm
Weight0.73 kg (1.60 lb), including battery
Front panel4 LED · 2 physical buttons
Operating temperature−40°C to +65°C (storage −40°C to +85°C)
Humidity100% condensation
Ingress protectionIP67 — dust-proof, temporary immersion to 1 m
ShockSurvives a 2 m pole drop
CertificationsCE Mark · FCC Part 15 Subpart B Class B · NGS antenna calibration

Source: CHCNAV i73+ brochure (Revision October 2022). Manufacturer figures; real-world results depend on conditions, corrections and technique. *Delivered via future firmware upgrade.
